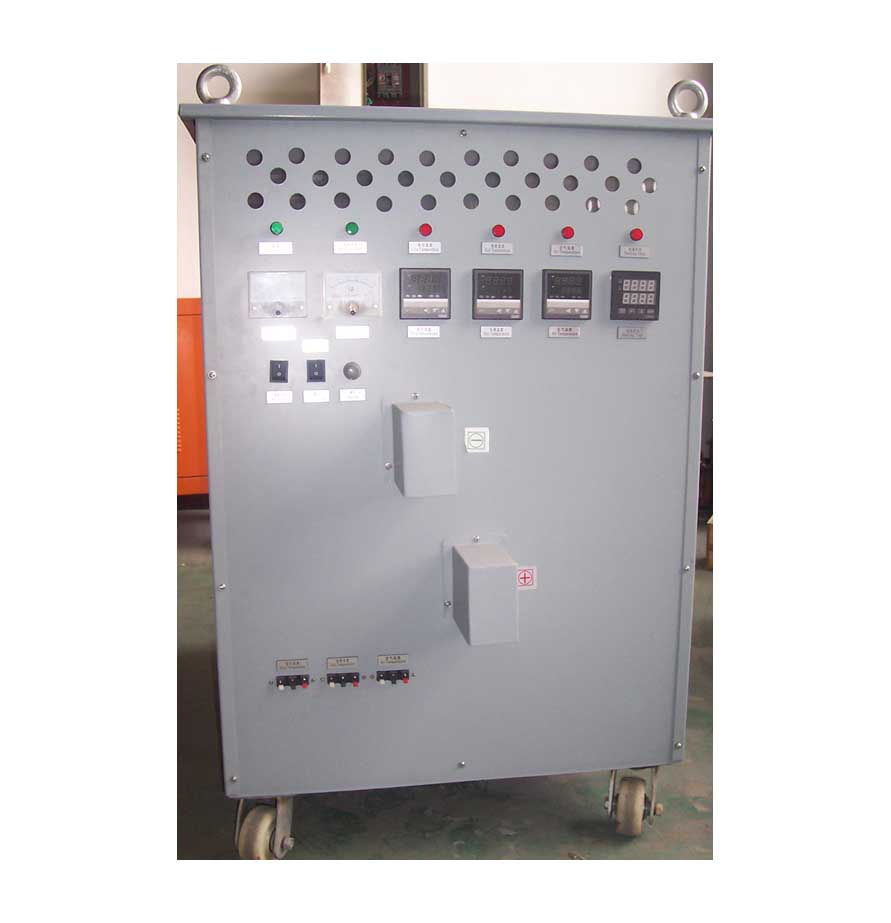

Drying Device for Generator Stator
Application
This device is used for dehumidifying and drying the generator after stator is installed in the factory and/or field.
Main technical parameters
Supply voltage: 380V±10%
Power frequency: 50-60Hz
Capacity of the transformer: 65KVA
Rated output voltage: 0-60V
Rated output current: 0-1000A
Heating temperature: 70-80℃
Steady voltage and current accuracy: ±1%
Voltage regulation mode: primary side step-less voltage regulation
The working time can be set in the range of 0-9999 minutes randomly.
The soft start time is adjustable in the range of 0-180 seconds
Ambient temperature: 0-40℃
Relative humidity: ≤85%
Altitude: ≤2000 meter
Good ventilation, no corrosive medium and no current-conductive, explosive dust in the surrounding environment
Outline dimension: 1200×780×1140 mm
Installation mode: Horizontal
Weight: Less than 500 kg |
